The Aguatronics high volume humidity control system


Aguatronics™

The Aguatronics™ smart humidity system efficiently optimizes relative humidity while controlling water and energy consumption. Its patented nozzle technology uses air to precisely atomize water.

Pressured air and water combine in the nozzle resulting in a fine, dry fog. This humidifies the environment without wetting surfaces. Our fully-customizable system can be used for any humidification application.

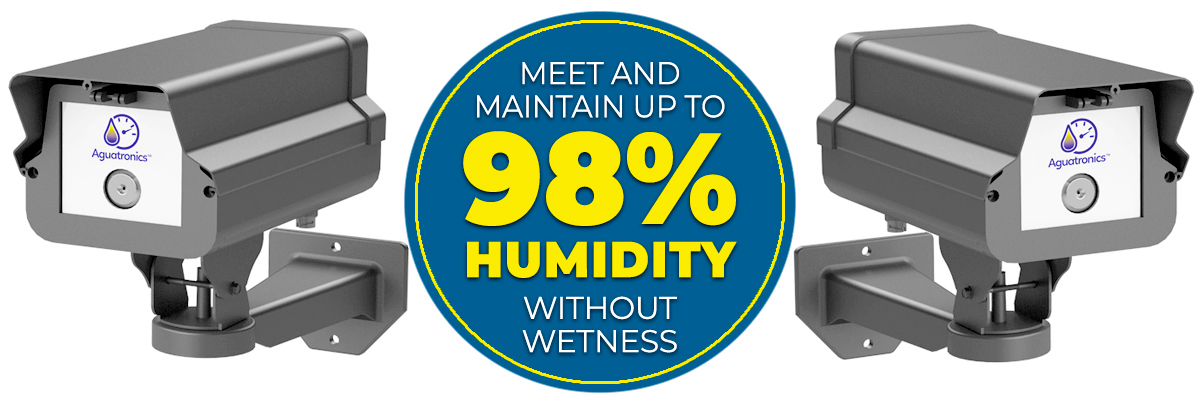

  • Effective - nozzles are capable of increasing relative humidity levels up to 98% without wetting floors and without the use of high-powered fans to break down water droplets

  • Safe - no standing water or air tank required, so no risk of bacterial colonization

  • Efficient - 100% water efficiency, no drain required, and low air (20psi) and water (40psi) operating pressures

  • Fast - patented nozzle design evenly distributes fine fog (6-10 microns); this fog dissipates very quickly and effectively increasing the RH

  • Economical - competitively priced - 1 nozzle is more effective when compared to multiple competitor nozzles

  • Simple - easy installation and maintenance - plug and play design

  • Reliable - high quality components for continuous operation

  • Customizable - works with any size room and any application

  • Energy efficient - low energy consumption - does not require the use of high powered fans to atomize

  • Low maintenance - requires a fraction of the maintenance when compared to the competitors
  • Aguatronics™ Nozzle

    Aguatronics Canon Basic 2.2

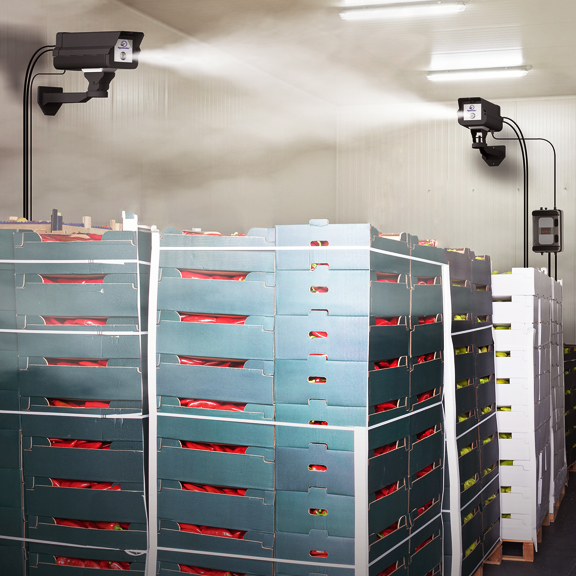

    FM Aguatronics Canon

    Aguatronics FM Canon Dual Nozzle


    System Features

  • Patented nozzle design evenly distributes fine fog (as small as 6-10 microns)

  • Customizable to adapt to any sized room or facility

  • Low maintenance

  • 100% water efficiency - All water evaporates; No drain required

  • High-tech control system with touch screen for precise humidity control

  • App-based remote access capability via smart phone or computer

  • Plug-and-play module that only requires air and water source

  • Requires low air (20PSI) and water (40PSI) operating pressures

  • Non-clogging large nozzle orifice with basic filtration

  • No standing water tanks - No risk of bacterial colonization

  • Aguatronics™ Sanitization



    Aguatronics™ Nozzle

    The Importance of Humidity

    When storing perishable products, many companies incur high expenses in order to maintain ideal temperatures and humidity levels within their applications. HVAC can be a solution to keep products at the proper temperature but air conditioning units, especially during the hot summer months, have a tendency to decrease humidity levels, which can cause products to dehydrate, that results in product shrinkage and costly product loss. Aguatronics™ can help reduce loss.

    In greenhouses and grow rooms, relative humidity (RH) levels influence a plants ability to transpire water and gases into the growing environmet. When RH levels are low, growth rates slow, leaves yellow or wilt and signs of root rot will occur. Increasing humidity levels when cultivating is essential to success. Aguatronics™ is the ideal tool for boosting Relative Humidity and optimizing VPD.


    Applications

    Ripening Rooms
    Cold Storage
    Paper and Textiles
    Wineries
    Theaters and Performing Arts
    Manufacturing
    Chicken Hatcheries
    Laboratories and Clean Rooms
    Disinfections and Sanitization

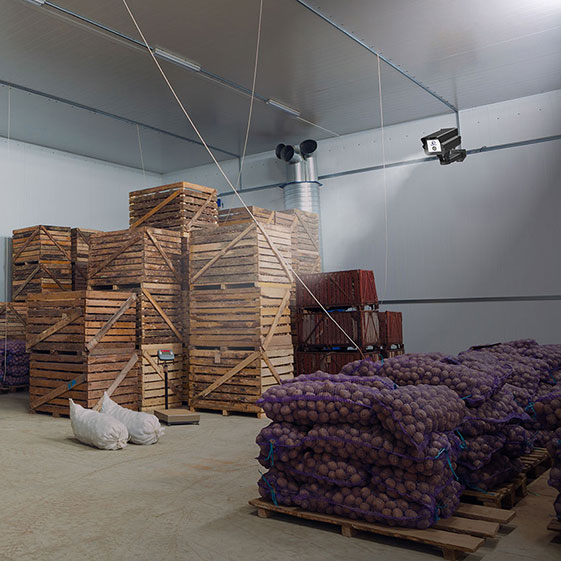

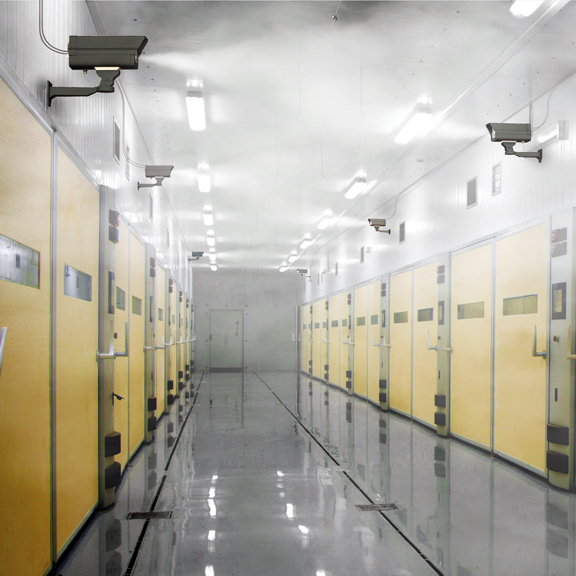

    Aguatronics™ for Perishable Storage

    Storage Humidity Systems

    Aguatronics™ Canon

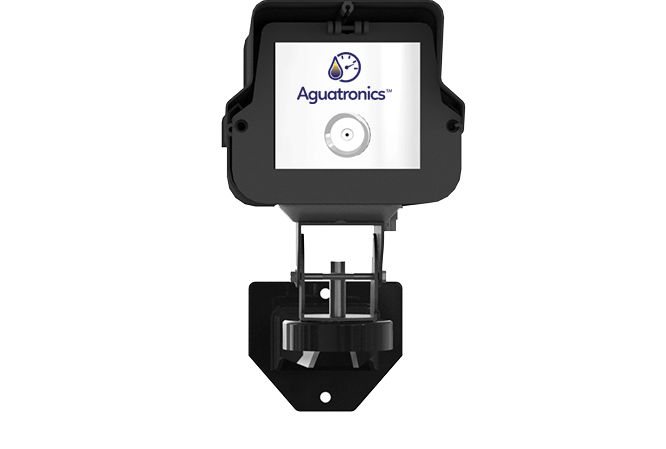

    Aguatronics™ Canon

  • For use in warehouses and large rooms
  • Not suited for retail environments
  • Mounted overhead
  • 2mm nozzle orifice
  • Flow Rate: 1 - 1.5 gal/hr
  • Fine fog: 6 - 10 microns
  • Aguatronics™ FM

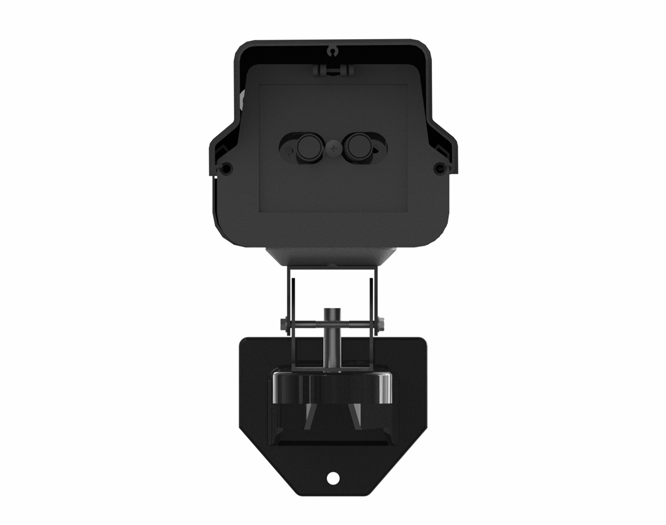

    Aguatronics™ FM Canon

  • For use in small to medium sized storage rooms
  • Mount over product
  • Use in air flow
    • Very fine fog: 6 - 10 microns
  • Fog pattern is adjustable
  • 2 nozzle tips
  • Each nozzle consumes 1/16 gal/hr

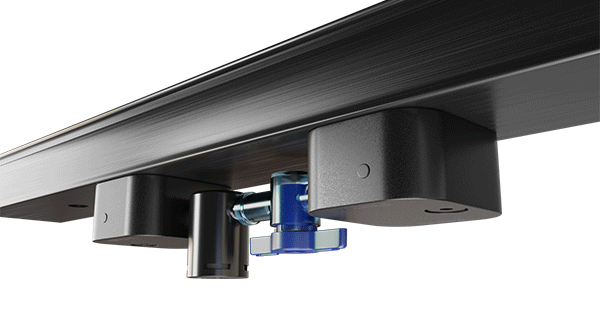

  • Aguatronics™ Track

    Aguatronics™ Track

  • For use in small to medium sized storage rooms
  • Mount over product
  • Use in air flow
  • Very fine fog: 4 - 10 microns
  • Customizable track length and nozzle quantity
  • Each nozzle consumes 1/16 gal/hr
  • Shut-off valve on each nozzle for precision control

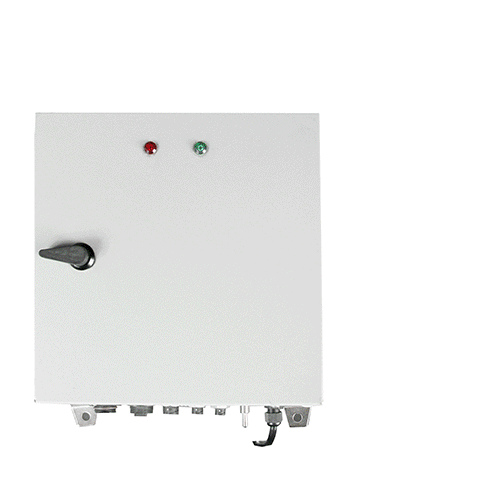

  • Aguatronics™ Control for Canon

    Aguatronics™ Control for Canon

  • For use in small to medium sized storage rooms
  • Mount over product
  • Use in air flow
  • Very fine fog: 4 - 10 microns
  • Customizable track length and nozzle quantity
  • Each nozzle consumes 1/16 gal/hr
  • Shut-off valve on each nozzle for precision control
